DIMENSIONS (HWD)
6 7/8" x 7 15/16" x 7 7/16" (17.4 cm x 20.2 cm x 19.0 cm)

WEIGHT
3.49 lbs (1.58 kg)

POWER REQUIREMENTS - STANDALONE CV7

• Constant current draw: 1.0 A @ 12 VDC (stand alone)
• Startup current draw: 1.5 A @ 12 VDC (stand alone)
• Minimum Power Supply Required: PSN2.8 Power Supply (FG423-17)
  (Using accessories can increase the power draw requirements)

POWER REQUIREMENTS - CV7 and BASE/1

• Constant current draw: 2.4 A @ 12 VDC (stand alone)
• Startup current draw: 3.6 A @ 12 VDC (stand alone)
• Minimum Power Supply Required: PSN4.4 Power Supply (FG423-45)
  (Using accessories can increase the power draw requirements)

MEMORY

• 64 MB on-board memory
• 512 MB Compact Flash or more (upgradable to 1 GB factory programmed)

PANEL LCD PARAMETERS

• Aspect Ratio: 16:9
• Brightness: 350 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 200:1
• Display colors: 256K colors (18-bit color depth)
• Dot/pixel pitch: 0.19 mm
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
• Video format: NTSC, PAL, and SECAM

VIEWING ANGLE

• 100° total viewing angle
• Vertical: +50° (up from center) and -50° (down from center)

IR RECEPTION ANGLE

• Horizontal: + 50° (left and right from center)
• Vertical: + 30° (up and down from center)

SUPPORTED AUDIO SAMPLE RATES
48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, 11025Hz, and 8000Hz

FRONT PANEL COMPONENTS

• Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel when panel is approached
• IR Receiver: 38 kHz AMX IR frequencies
• Sleep Button: Pushbutton (gray) provides both access to the Setup and Calibration page and toggles the panel between a "sleep" or "wake" state
• Microphone: Used for intercom applications (requires the NXA-AVB/ETHERNET Breakout Box for analog communication)
• Speakers: Stereo output with a frequency response of 500 Hz - 7 kHz

REAR CONNECTORS

• Mini-USB Connector: 5-pin Mini-USB connector used for programming, firmware update, and touch panel file transfer between the PC and the target panel
• Stereo Output Connector: Stereo output through a 3.5mm mini-jack (for use with external speakers or headphones)
• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication
• USB Connector: Type A USB port connects an external keyboard or mouse device for use with Virtual PC applications

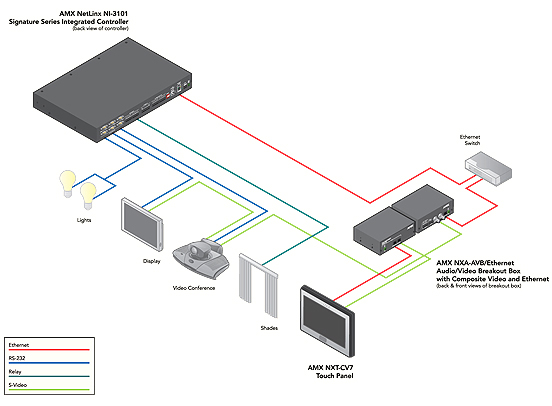

• Audio/Video Connector: RJ-45 connection for A/V signals (via CAT5) between the NXA-AVB/ETHERNET Breakout Box and the panel
• Power: 2-pin 3.5 mm mini-Phoenix connector

CERTIFICATIONS

• FCC Part 15 Class B
• CE

OPERATING / STORAGE ENVIRONMENTS

• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% to 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% to 85% RH

INCLUDED ACESSORIES

• Installation Kit (KA2258-01)
• Modero 10' Tabletop Cable (CA2250-50)
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
