DIMENSIONS (HWD)

• 3 1/2" x 17" x 3 1/2" (8.8 cm x 43.2 cm x 8.8 cm)
• RU: 2

WEIGHT
4.55 lbs (2.06 kg)

POWER
900 mA @ 12 VDC

ENCLOSURE
Metal with black matte finish

MEMORY

• 64 MB SDRAM (FG2105-05 & FG2105-15
• 256 MB RAM (FG2105-25 & FG2105-35)
• 1 MB of Non-volatile SRAM

COMPACT FLASH
2 GB Compact Flash (upgradeable to 4 GB factory programmed)

ONBOARD MASTER
404 MIPS

CERTIFICATIONS
FCC Part 15 Class B, CE, and IEC 60950

FRONT PANEL COMPONENTS

• LINK/ACT
• Status: Green LED blinks to indicate that the system is programmed and communicating properly
• Output: Red LED blinks when the Controller transmits data, sets channels and sends data strings, etc.
• Input: Yellow LED blinks when the Controller receives data from button pushes, strings, commands, channel levels, etc.
• RS-232/422/485 LEDs
• Relay LEDs
• IR/Serial LEDs
• I/O LEDs
• Rack-mount brackets: Provides an installation option for the Integrated Controller to be mounted into an equipment rack, when used with the Installation Kit (KA2105-01)

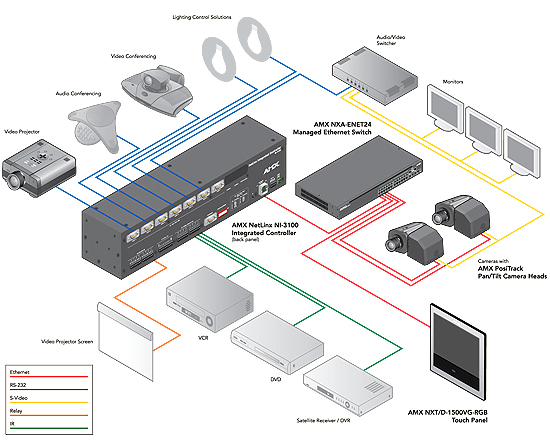

REAR PANEL CONNECTORS

• RS-232/422/485 (Ports 1 - 7)
• ICSNet: Two RJ-45 connectors for ICSNet interface (provided by ICSNet daughter card)
• ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller (provided by ICSNet daughter card)
• Relay (Port 8)
• Digital I/O (Port 17)
• IR/Serial (Ports 9-16)
• Program Port
• Configuration DIP Switch: Sets the communication parameters for the Program port
• ID Pushbutton
• Ethernet Port: RJ-45 port for 10/100 Mbps communication. LEDs show communication activity, connection status, speeds, and mode information: - SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10 Mbps. - L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly, and blinks when receiving Ethernet data packets.
• AxLink LED
• AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external control devices
• Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector

ENVIRONMENTAL

• Operating Temperature: 0° C (32° F) to 50° C (122° F)
• Operating Humidity: 20% to 85% RH
• Heat Dissipation (Typical): 36.9 BTU/hr

INCLUDED ACCESSORIES

• 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)
• 4-pin 3.5 mm mini-Phoenix (female) AxLink connector (41-5047)
• 10-pin 3.5 mm mini-Phoenix (female) I/O connector (41-5107)
• Two 8-pin 3.5 mm mini-Phoenix female Relay connectors (41-5083)
• Two CC-NIRC IR Emitters
• Two removable rack ears (62-2105-06)
