DIMENSIONS (HWD)
- 5 3/16" x 17" x 9 5/16" (13.2 cm x 43.2 cm x 23.7 cm)
- RU: 3
WEIGHT 9.15 lbs (4.15 kg)
POWER 900 mA @ 12 VDC
ENCLOSURE Metal with black matte finish
MEMORY
- 64 MB SDRAM (FG2105-06)
- 256 MB RAM (FG2105-26)
- 1 MB of Non-volatile SRAM
COMPACT FLASH 2 GB Compact Flash (upgradeable to 4 GB factory programmed)
ONBOARD MASTER 404 MIPS
CERTIFICATIONS FCC Part 15 Class B, CE, and IEC 60950
FRONT PANEL COMPONENTS
- LINK/ACT: Green LED blinks when the Ethernet cables are connected and terminated correctly. Also blinks when receiving Ethernet data packets
- Status: Green LED blinks to indicate that the system is programmed and communicating properly
- Output: Red LED blinks when the Controller transmits data, sets channels, sends data strings, etc.
- Input: Yellow LED blinks when the Controller receives data from button pushes, strings, commands, channel levels, etc.
- RS-232/422/485 LEDs
- Relay LEDs
- IR/Serial LED
- I/O LEDs
- NetLinx Control Card Slot 1 - 4
- Rack-mount brackets: Provides an installation option for the Integrated Controller to be mounted into an equipment rack, when used with the Installation Kit (KA2105-01)

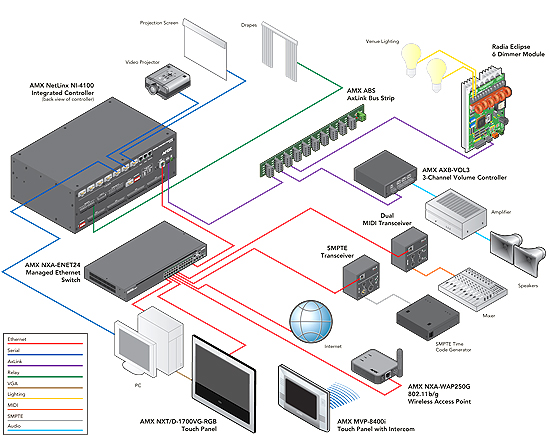

REAR PANEL CONNECTORS
- RS-232/422/485 (Ports 1 - 7)
- ICSNet: Two RJ-45 connectors for ICSNet interface (included)
- ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller (included)
- Relay (Port 8)
- Digital I/O (Port 17)
- IR/Serial (Ports 9 - 16)
- Program Port
- Configuration DIP Switch: Sets the communication parameters for the Program port
- ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device
- Ethernet Port: RJ-45 port for 10/100 Mbps communication. LEDs show communication activity, connection status, speeds, and mode information: - SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10 Mbps. - L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly, and blinks when receiving Ethernet data packets.
- AxLink LED: Green LED indicates the state of the AxLink port
- AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external control devices
- Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector
- CardFrame Number DIP Switch
ENVIRONMENTAL
- Operating Temperature: 0 C (32 F) to 50 C (122 F)
- Operating Humidity: 20% to 85% RH
- Heat Dissipation (Typical): 36.9 BTU/hr
INCLUDED ACCESSORIES
- 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)
- 4-pin 3.5 mm mini-Phoenix (female) AxLink connector (41-5047)
- 10-pin 3.5 mm mini-Phoenix (female) I/O connector (41-5107)
- Two 8-pin 3.5 mm mini-Phoenix (female) Relay connectors (41-5083)
- Two CC-NIRC IR Emitters
- Two removable rack ears (62-2105-07)
|
